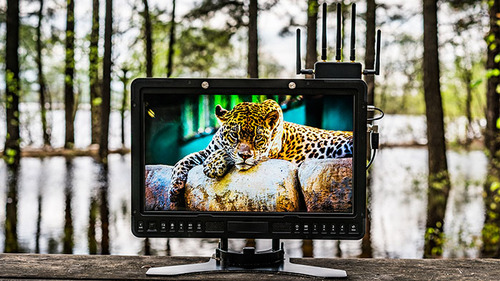

Display
| Panel Type |
IPS |
| Size Diagonal |
17.25 |
| Resolution |
1920x1080 |
| Pixel Density (PPI) |
128 PPI |
| Aspect Ratio |
16:9 |
| Active Area |
15(W) x 8.42(H) |
| Brightness |
1100 nits |
| Contrast |
700:1 |
| Color Gamut |
100% Rec.709 |
| Color Depth |
8 bit |
| Viewing Angle |
70 deg. Left/Right; 50 Deg. Up; 70 Deg Down |
| Backlight Type |
LED |
| Adjustable Backlight |
Yes |
| Temperature Adaptive Color |
No |
Input Signal Types/Formats
| 3G-SDI |
YCC 4:2:2 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
| HD-SDI |
YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI |
Not Supported |
| HDMI |
Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50 |
| Component |
Not Supported |
| Composite |
Not Supported |
| Audio |
HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels |
Output Signal Types/Formats
| 3G-SDI |
YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, |
| HD-SDI |
YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits |
| SD-SDI |
Not Supported |
| HDMI |
Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50 |
| Component |
Not Supported |
| Composite |
Not Supported |
| Audio |
No Audio output (for initial firmware release) to be supported at a later release |
Connector Type
| SDI |
2x 3G Inputs, 2x 3G Outputs |
| HDMI |
1x Input, 1x Output |
| Component |
Not Supported |
| Composite |
Not Supported |
| Audio |
1x Headphone Jack on Front of Monitor |
| Power In |
|
| Power Out |
1x AC Power Input -3 Prong 90-260V, 1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max |
| USB |
1x Front USB2, 2x Rear USB2 |
Controls
| Primary Control Interface |
Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 14 Instant Selection; Tools Menu |
| Record/Capture |
Dedicated Capture Button on Front Bezel |
| User Defined Functions |
|
| RF Wireless Remote / External Control |
|
| USB Remote / External Control |
|
Data I/O
| Storage |
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades |
| USB |
|
| Wireless |
|
| Wifi |
|
Power
| Connector Type |
3Pin Grounded AC 120/240V IN, Dual XLR 1234VDC IN for Batteries, 12V Lemo 2pin OUT 4A Max |
| Voltage |
DC Operating Voltage Range: 12-34 VDC AC Operating Voltage Range: 90 - 240 VAC |
| Power Consumption |
|
| Battery Plate Included |
|
| Recommended Power Supply |
|
| Overload Protection |
|
| Smart Battery Compliant |
|
| Battery Types |
Gold Mount / VMount via 4pin XLR Connector |
| Battery Chemistry |
|
| Output Voltage (VDC) |
|
| Battery Capacity (mAh) |
|
| Battery Charging Time (hours) |
|
Environmental
| Compliance |
FCC, IC, CE, RoHS |
| Operating Temperature |
32F 100F |
| Storage Temperature |
4F-120F |
| Screen Protection |
Acrylic Screen Protector Available as an Option |
| Height |
11.5" (29.21cm) |
| Width |
17.5" (44.45cm) |
| Depth/Length |
2.5" (6.35cm) |
| Weight (Item Only without battery) |
12.0625lb (5.47kg) |
| Weight (Packaged) |
16.86lb (7.65kg) |
| Mount Points |
VESA mount, Multiple 1⁄4”20 & 3⁄8”16 Threads on Top, Bottom, Left & RightMultiple 1⁄4”20 & 3⁄8”16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor |
| Note: |
|
Software
| Pixel Zoom (type) |
2x & 4x Zoom with smooth pan via joystick |
| Frame Guides |
Yes: Preset Aspect Ratios & Customizable |
| DSLR Scale |
Canon 5DMkii & Canon 7D |
| Custom Scale |
Yes (Underscan Only) |
| Anamorphic De-Squeeze |
Yes: 1.33x, 1.5x, 1.66x, 2.0x |
| Image Rotate(Manual/Automatic) |
Yes Automatic |
| Image Flip (Manual/Automatic) |
Yes Automatic |
| Cross Conversion |
Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist (Colors) |
Yes User Adjustable Color and Intensity |
| Peaking |
Yes User Adjustable Intensity |
| False Color |
Yes Rainbow & Arri Style |
| Zebra |
Yes Dual User Configurable |
| Waveform |
Yes Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope |
Yes |
| PIP |
|
| RGB Parade |
Yes Fully User Customizable |
| Histogram |
Yes Luma & RGB Style |
| Horizon Indicator |
|
| Image Capture |
Yes With Dedicated Button |
| Dailies Recording/Playback |
|
| Master Recording |
|
| Wifi Streaming |
|
| Custom LUTS |
Yes Loadable by Page or as Systemwide Color Calibration |
| LUT Creation |
|
| LUT Downstream |
Yes Available on SDI 1 or HDMI Out |
| LUT Import |
via SD Card |
| Onion Skinning |
|
| Image Overlay |
Yes with Intensity Slider and Blink Setting |
| Blue Only |
|
| Firmware |
Compatible with 1700 Series Firmware V3.0 and Later |
| Audio Meters |
Yes HDMI & SDI up to 8 channel |
|
